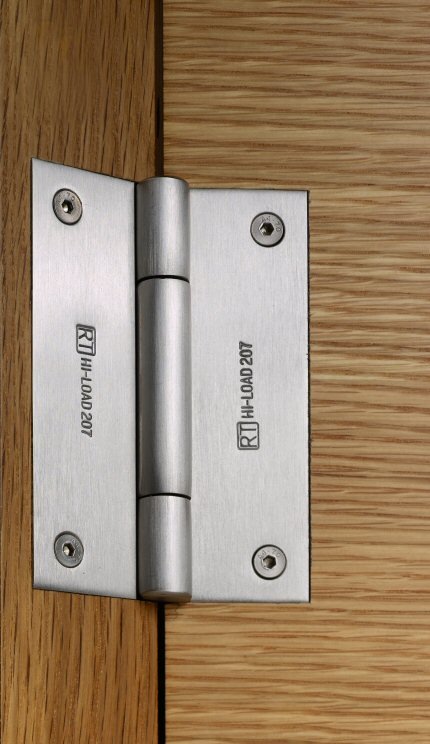

101.6×71.6×5mm Three knuckle butt hinge
Tested to & passed the DHF TS001: Door mounted Anti-ligature devices. Certificate TC/07/09/01/C1 Grade 4
Maximum adjusted door weight 120kg
Minimum door thickness 44mm
Maintenance free, guaranteed for 25
To BS EN 1935 Grade 13
CE Certificate No. 1121-CPR-AC0007
Suitable for use on fire doors: Certifire approved – CF215
To be fitted with HP207-300 intumescent hinge pads, if being installed on fire doors
Concealed bearings
4 x M4 Allen Head machine screws to faceplates
8 x metric 5 × 32mm wood screws
Unless otherwise stated stainless steel substrate, Grade 316 stainless steel available
