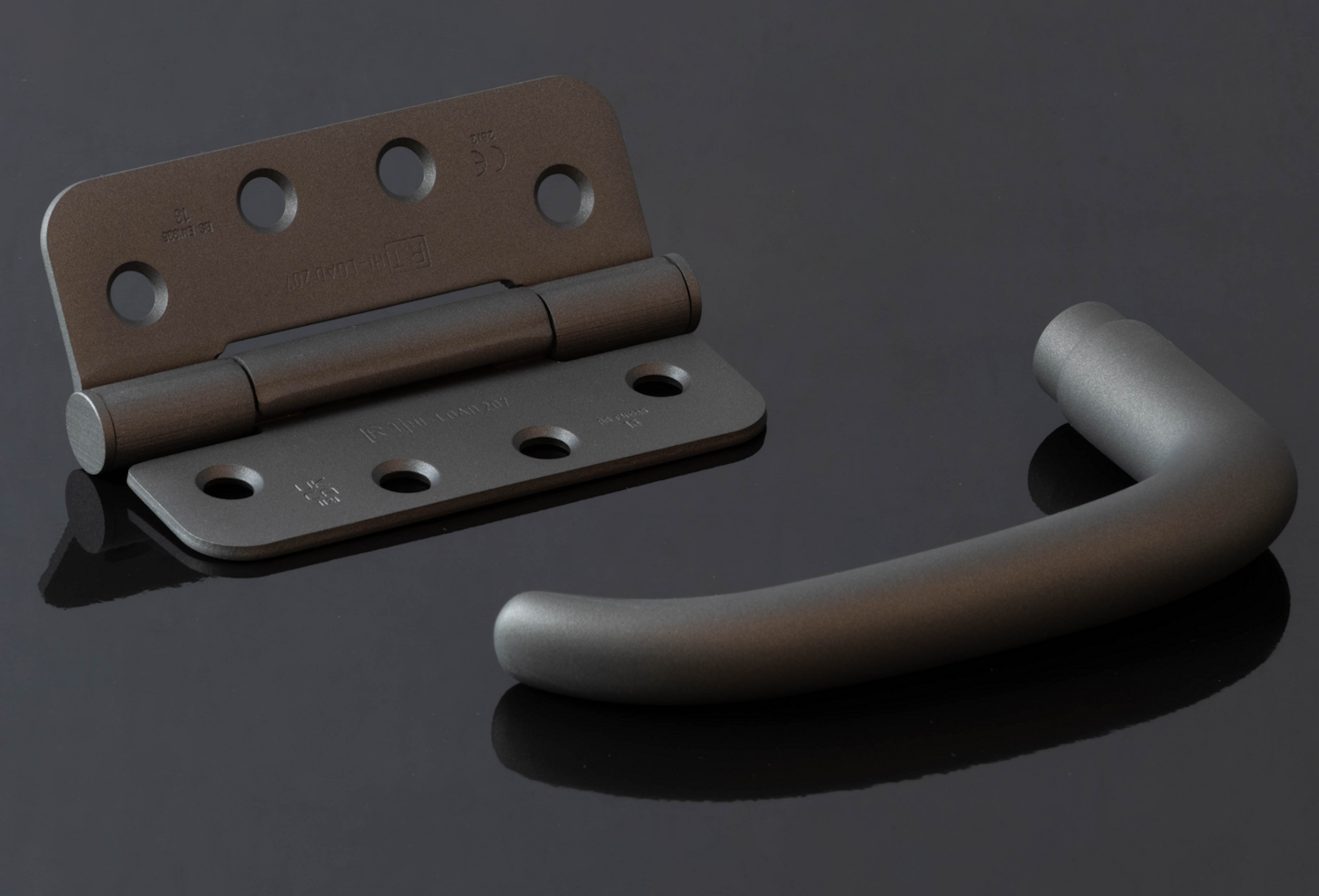

Flatt Matt Black

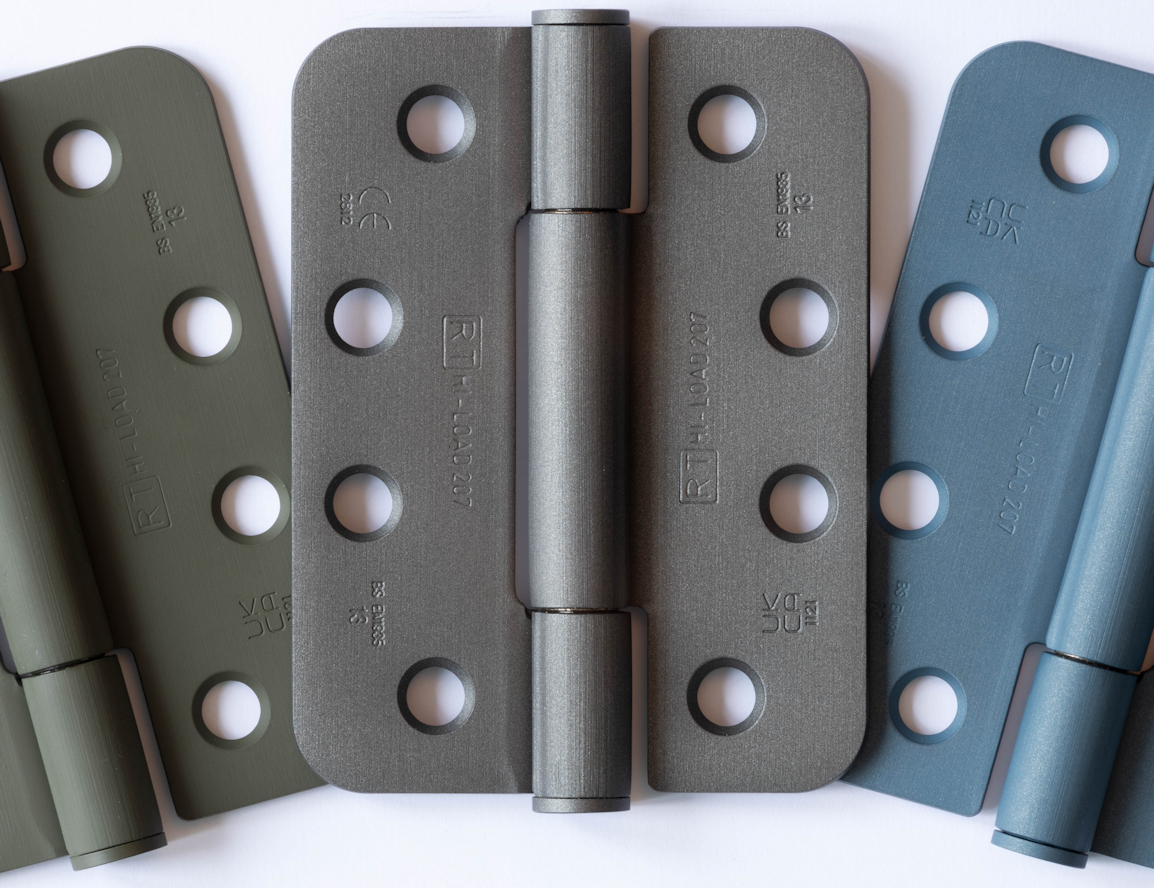

PVD Charcoal
PVD Bronze Hinge

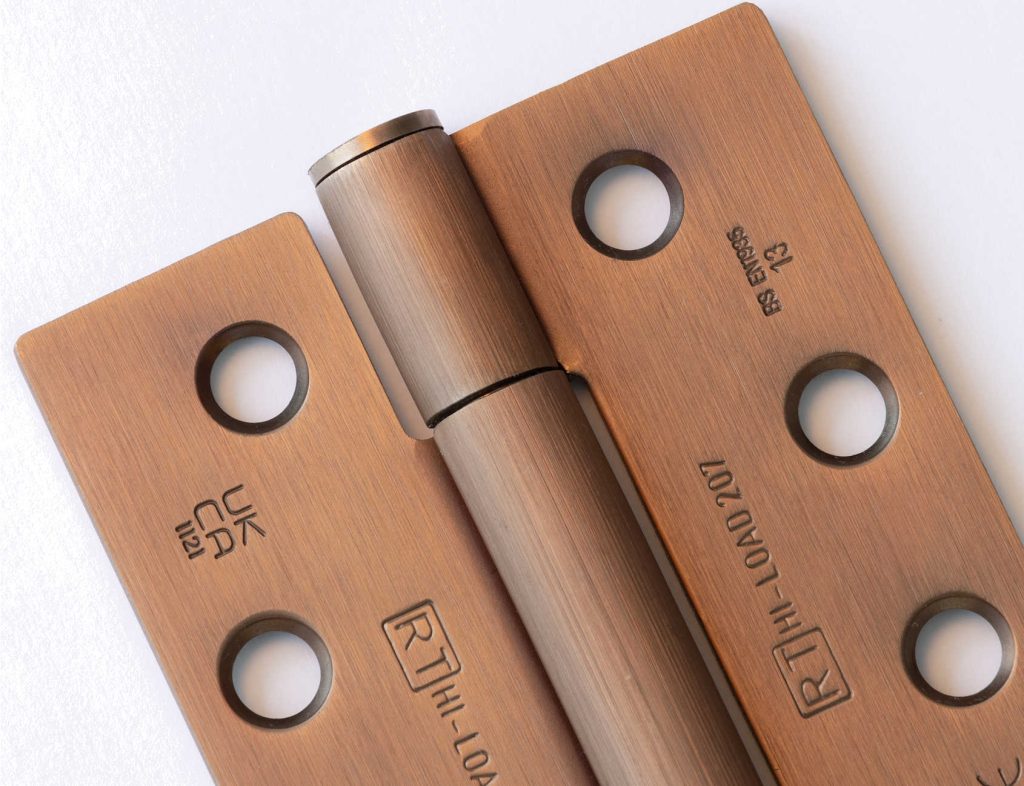

PVD Bronze
Cerakote Ceramic coating

HI-LOAD hinges are available in an extensive range of in-house applied finishes. Whether this involves dressing the substrate material in terms of Polishing, Brushing, Fine Satin or Burnishing or the application of surface processes which create a desired colour, tone or effect, our ability to either mimic desired material finishes with paints or lacquers or, for example, plate and patinate to create an artificially aged look is unrivalled; all of which we manufacture on either stainless or mild steel, the most suitable manufacturing material for hinges which endure.

In addition to the finishes below HI-LOAD hinges can also be plated in semi/precious metals including Gold and Silver. For details required finishes or for matching existing items please contact the sales office.

Standard Finishes (part suffixes)
BSS: Brushed stainless steel (240 grit)
SSS: Satin stainless steel (320 fine grit)
PSS: Bright polished stainless steel

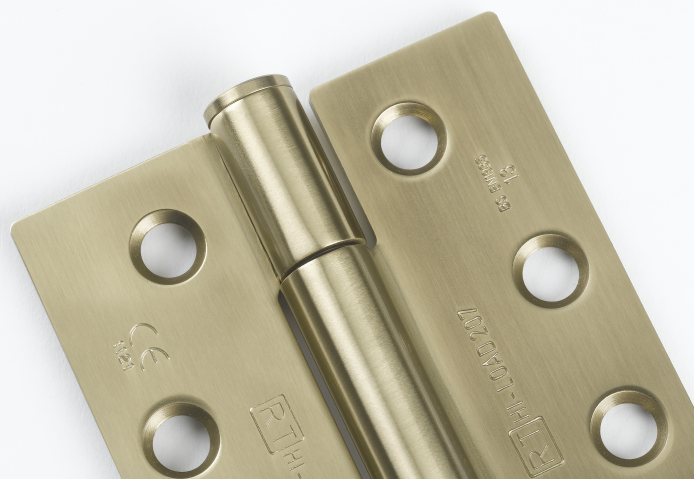

SBB: Simulated Brushed Brass. Dyed Electrolacquer

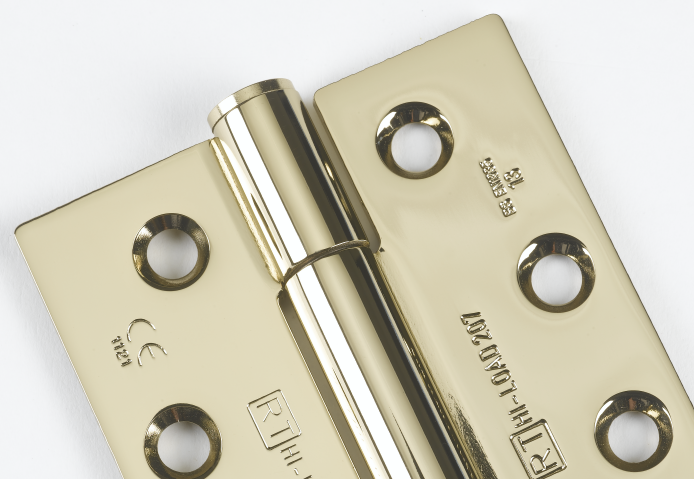

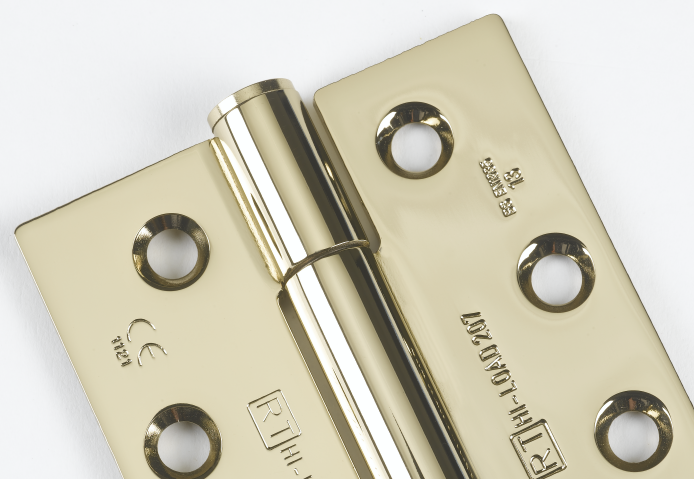

SPB: Simulated Polished Brass. Dyed Electrolacquer

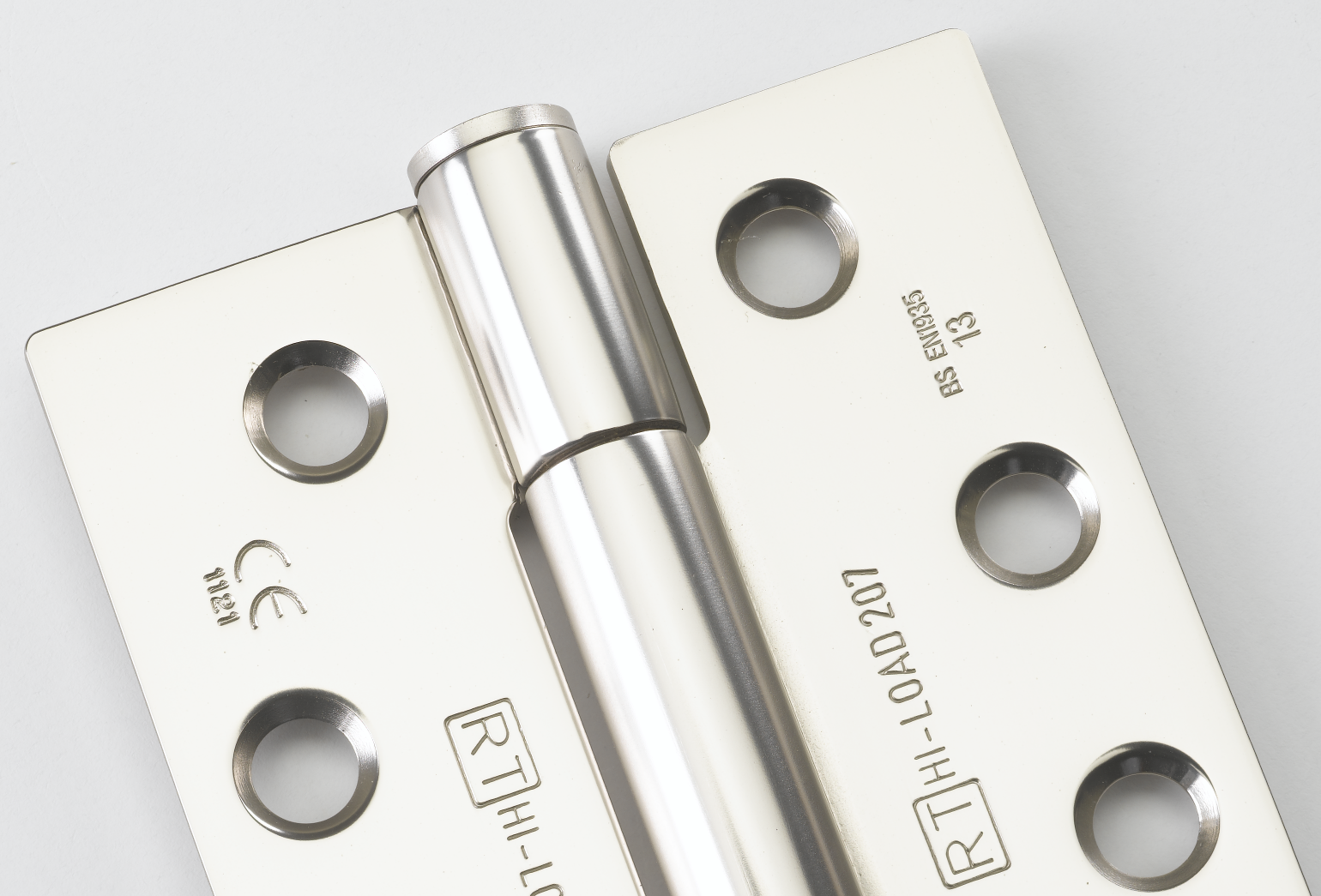

SNP: Satin nickel electroplate

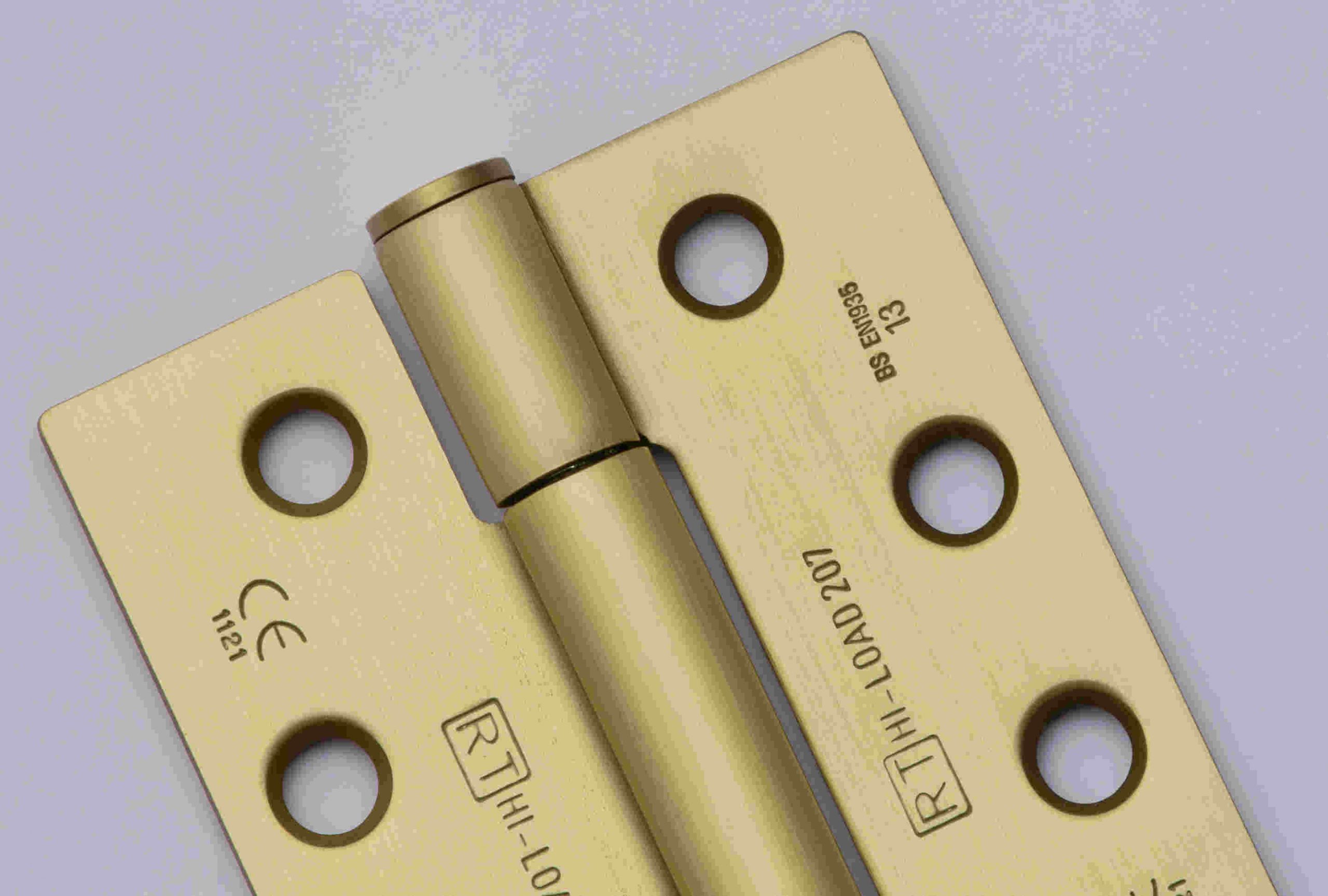

SBL: Satin brass electroplate lacquered

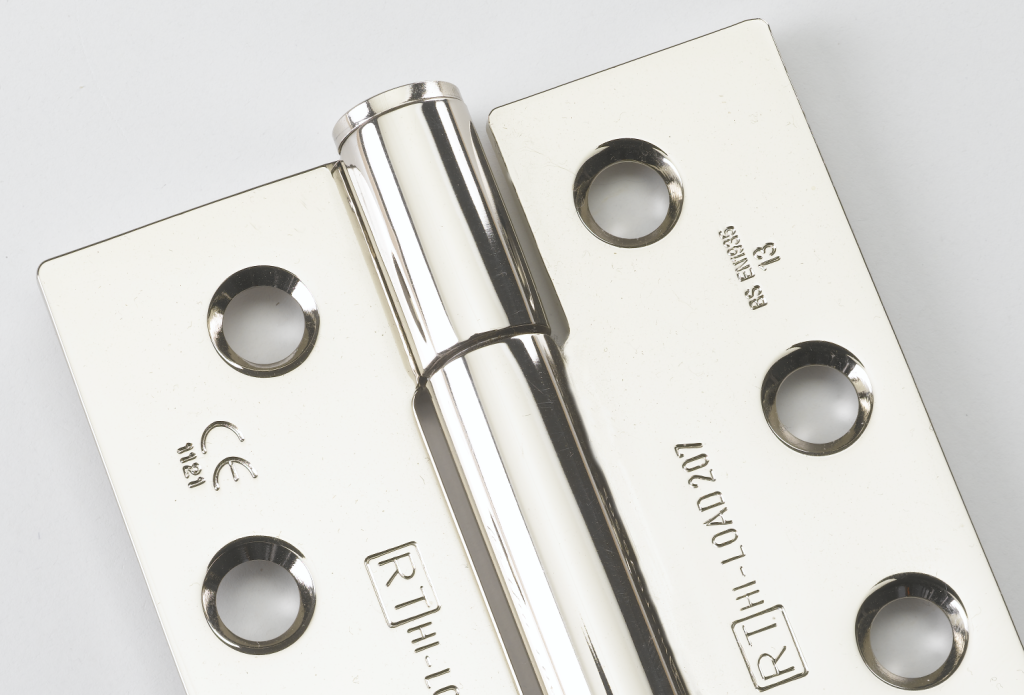

PNP: Polished nickel plate. Slightly softer and whiter in colour than PSS, nickel plate also has self leveling properties which make for a slightly smoother final finish.
PBL: Polished Brass electroplate lacquered

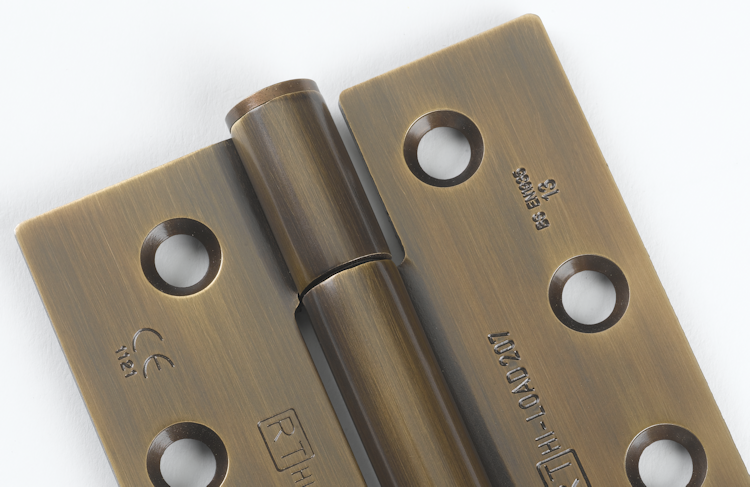

ABR: Antique Brass. Electrobrass plated and patina. Vertically distressed giving high and low lights, lacquer sealed.

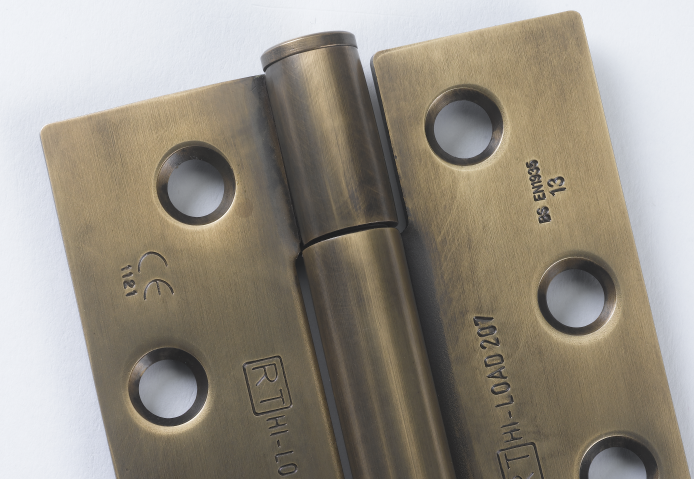

OBZ: Old Bronze. Electrobrass plated and patina. Relieved giving high and low lights, lacquer sealed.

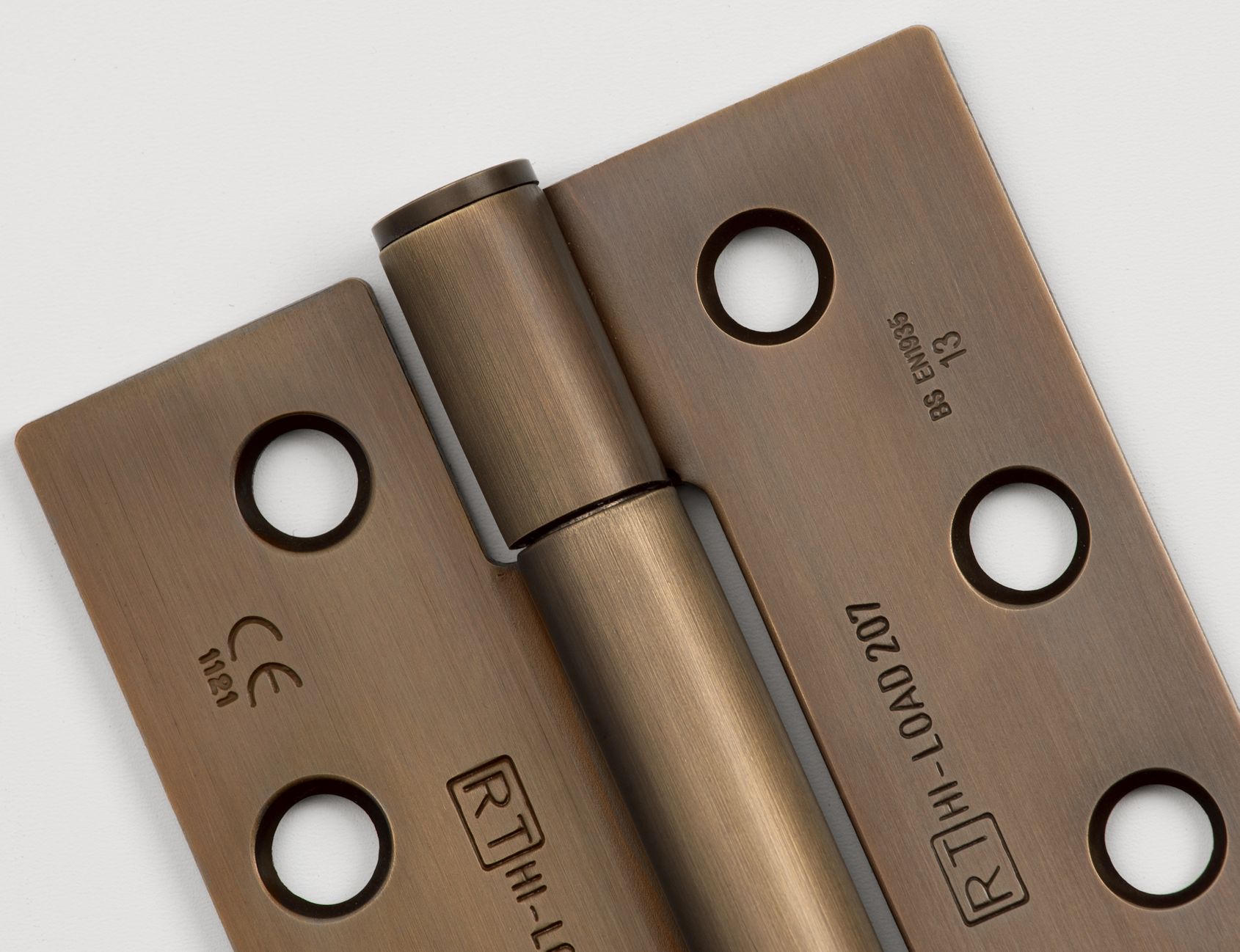

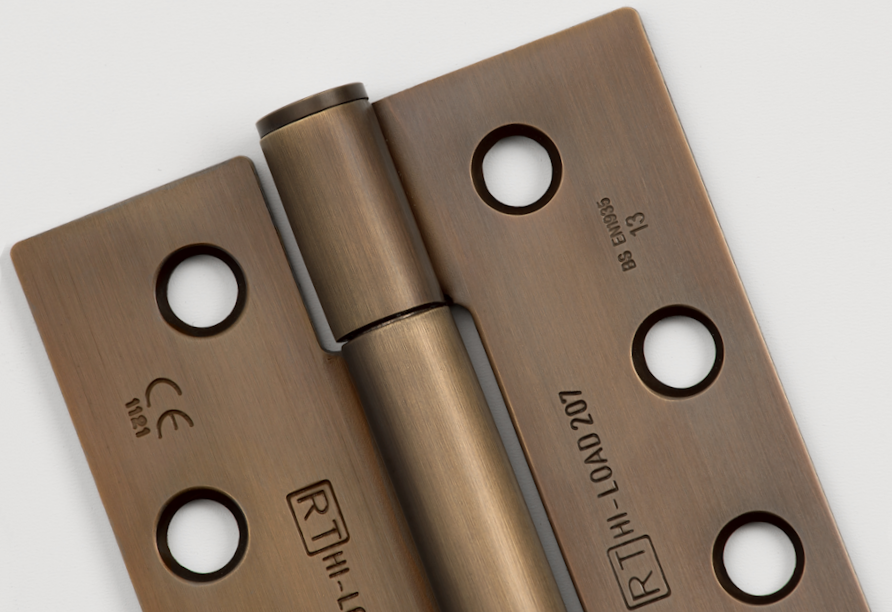

IBUL: Imitation Bronze Lacquered. Electrobrass plated and patina. Relieved giving high and low lights esp. around features, Lacquer finished as standard. (also available IBU – Waxed finish)

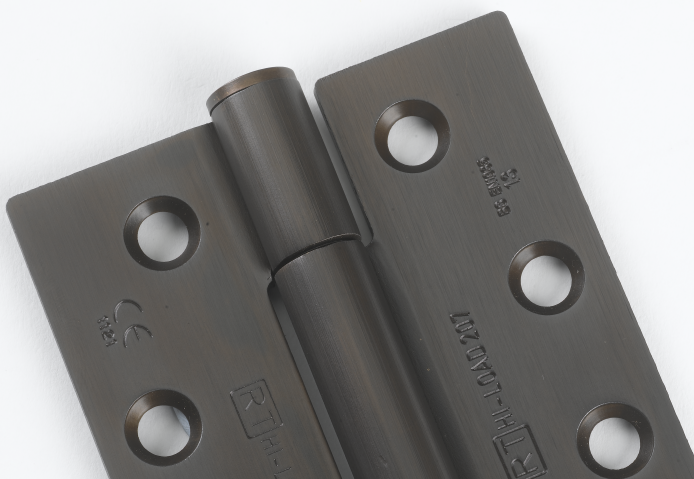

DBZ: Dark Bronze. Electrobrass plated heavy patination and gently relieved giving rich dark brown/black colour, lacquer sealed

Protective finishes only
BZP: Bright zinc plate
EBP: Electro brass plate
SZP: Satin zinc plate

PPC based finishes
NST: Polyester powder coat

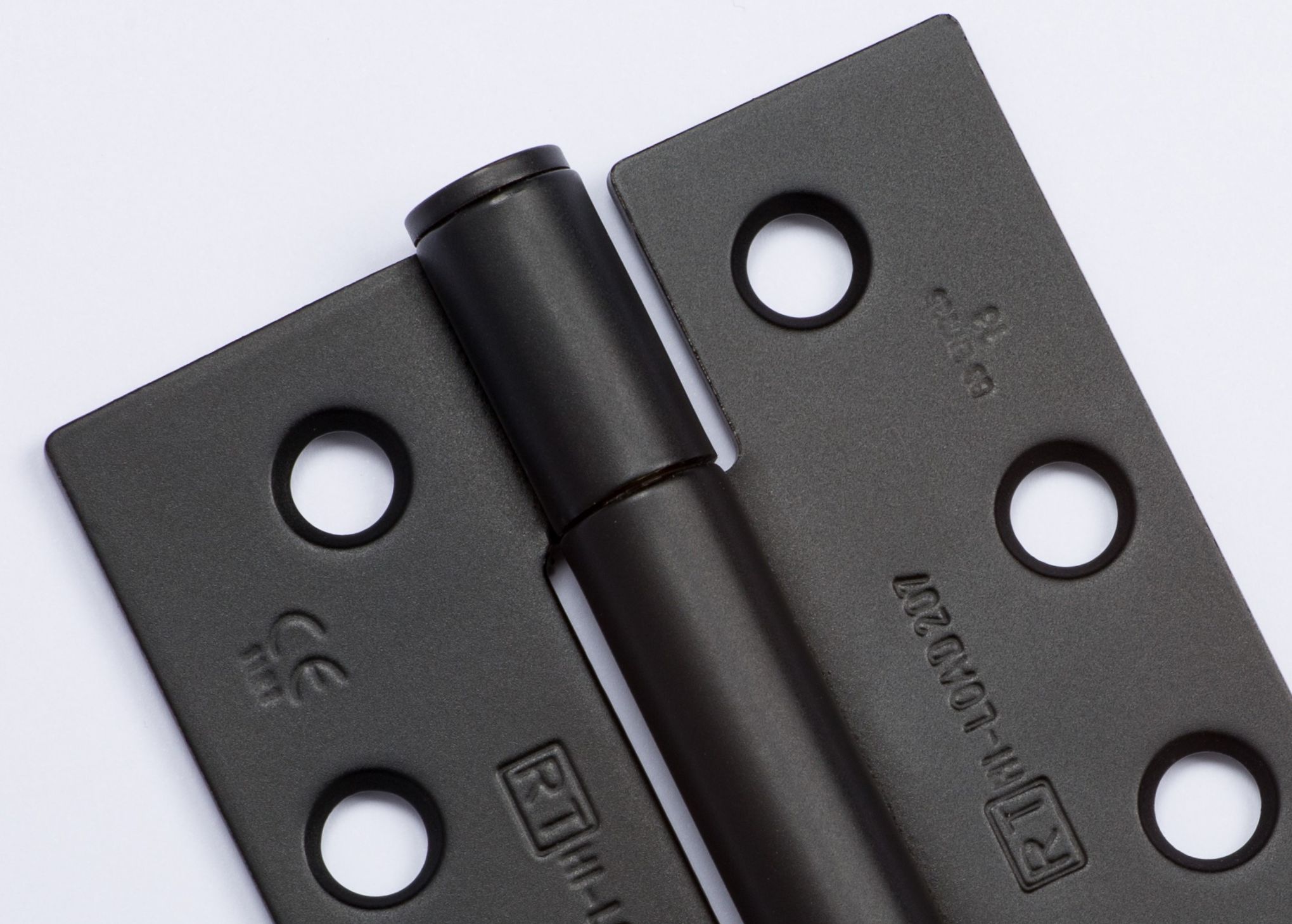

FMB: Flat Matt Black, PPC
BIO: BioCote clear antimibrobial lacquer

PVD (Physical Vapour Deposition)

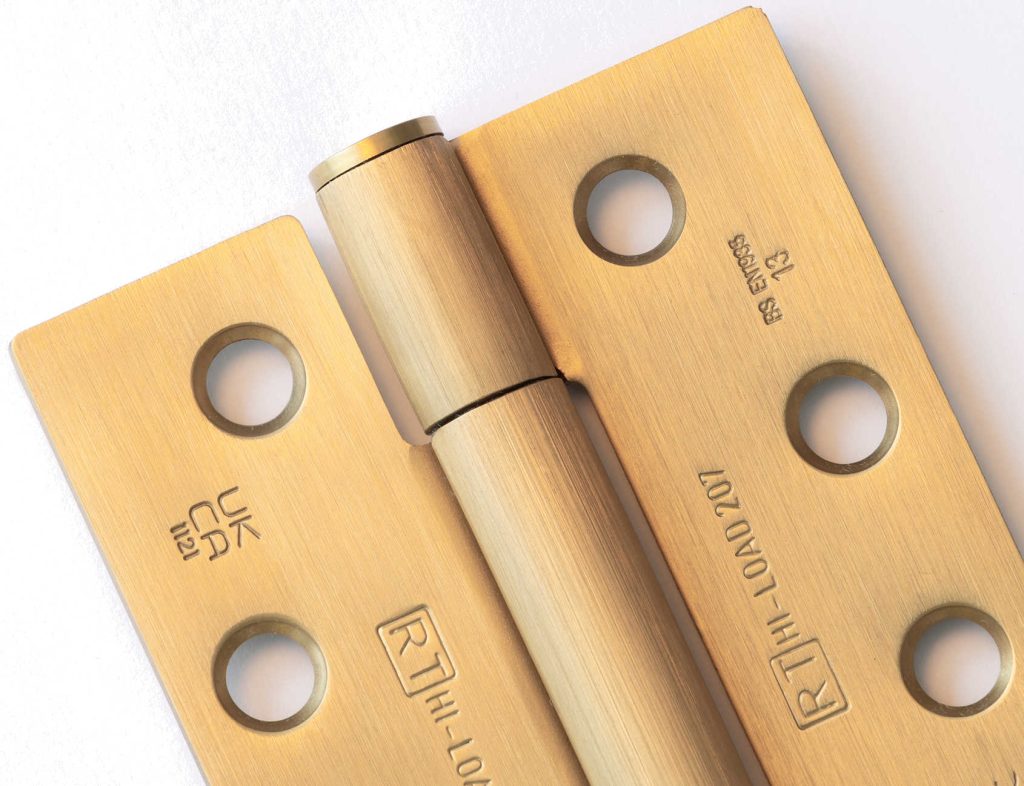

PVD Brass, Bronze, Copper, Gunmetal finishes can all be provided in satin or polished

Cerakote – Thin Film Ceramic Coating
Unique Ceramic-Polymer coating available in over 100 colours (See Cerakote page for more info)
