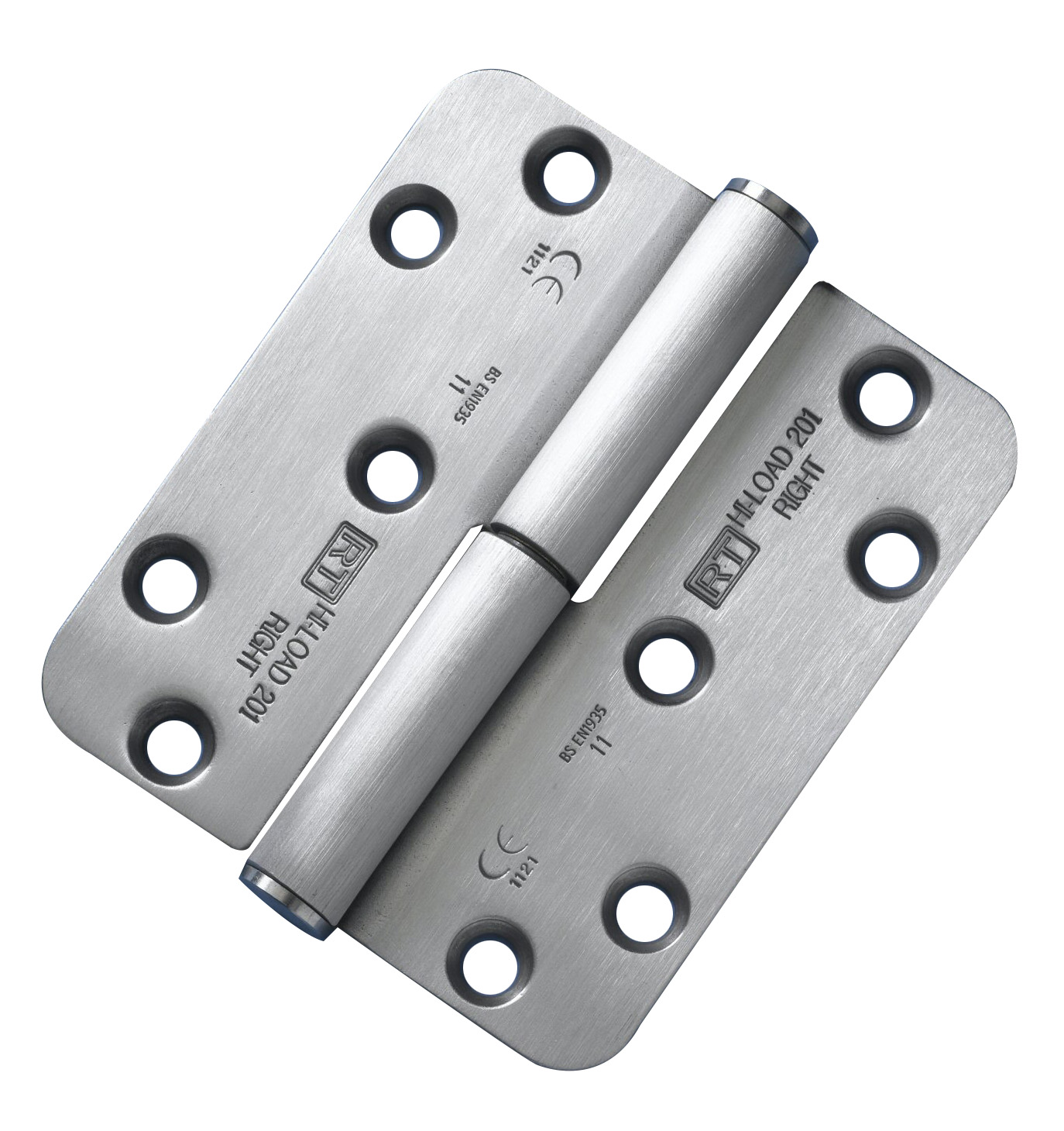

H201

Specifications

Concealed bearing version of H101
100×88×3mm Lift-off hinge
Maximum adjusted door weight 80kg
To BS EN 1935 Grade 11
Minimum door thickness 44mm
Maintenance free, guaranteed for 25 years
CE Certificate No. 2812-CPR-AC0135
Suitable for use on fire doors: Certifire approved – CF215
To be fitted with HP102 intumescent hinge pads, if being installed on fire doors
c/w metric 5 × 32mm wood screws
Unless otherwise stated stainless steel substrate, Grade 316 stainless steel available
