Specifications

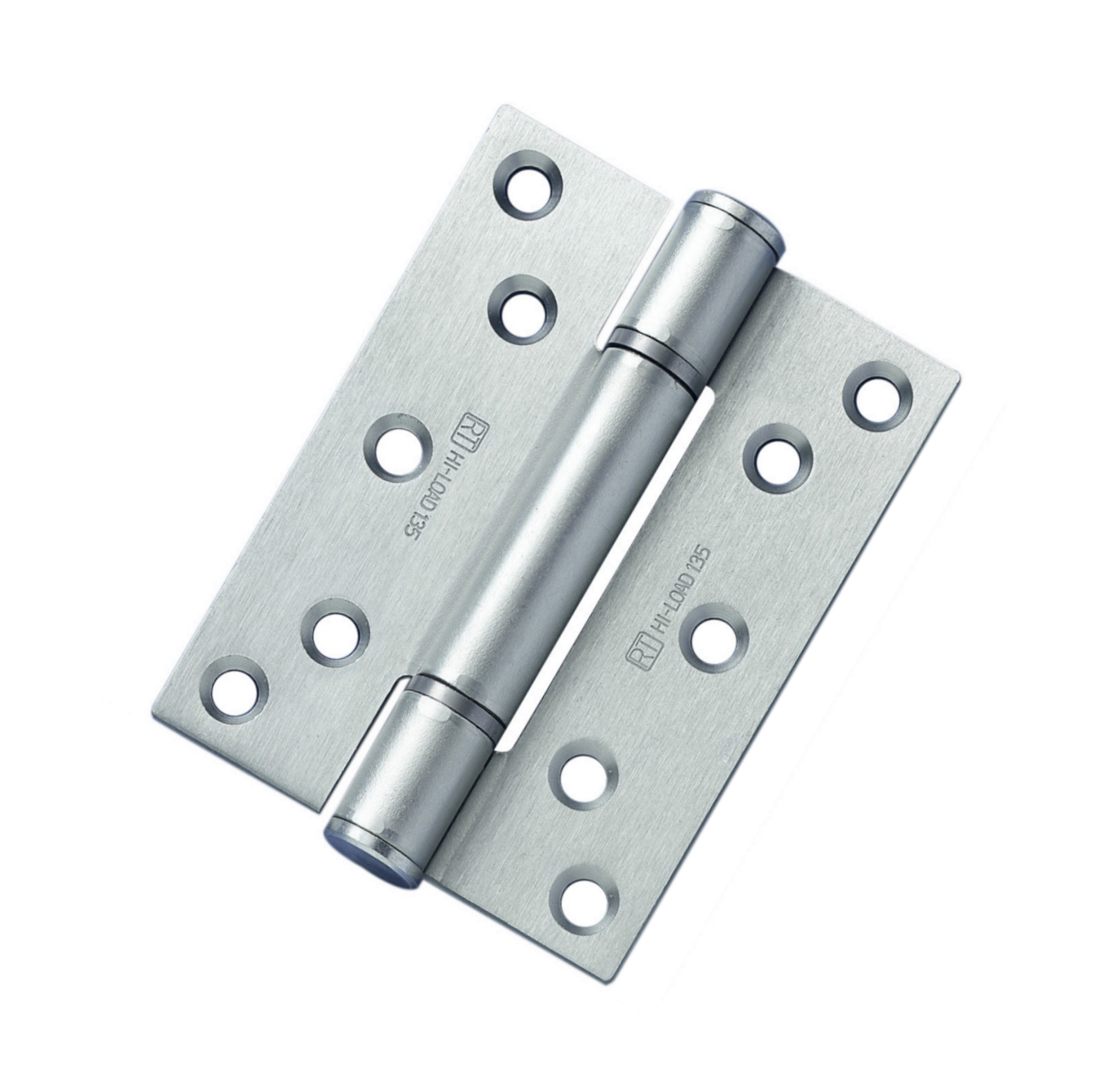

125x93x4mm Three knuckle butt hinge
Maximum adjusted door weight 200kg
Minimum door thickness 44mm
Maintenance free, guaranteed for 25 years
FD30 Fire Rated
Available in radius (R10) corner version
To be fitted with HP1354 intumescent hinge pads, if being installed on fire doors
c/w metric 6 x 32mm wood screws
Unless stated Mild steel substrate, Grade 304 or 316 stainless steel available
