H1254-A & B (Projection Hinges)


Allows the door leaf to pivot around obstructions such as architrave.

H1254-A: 125×111×3.25mm Three knuckle projection hinge 20mm projection, 111mm overall width

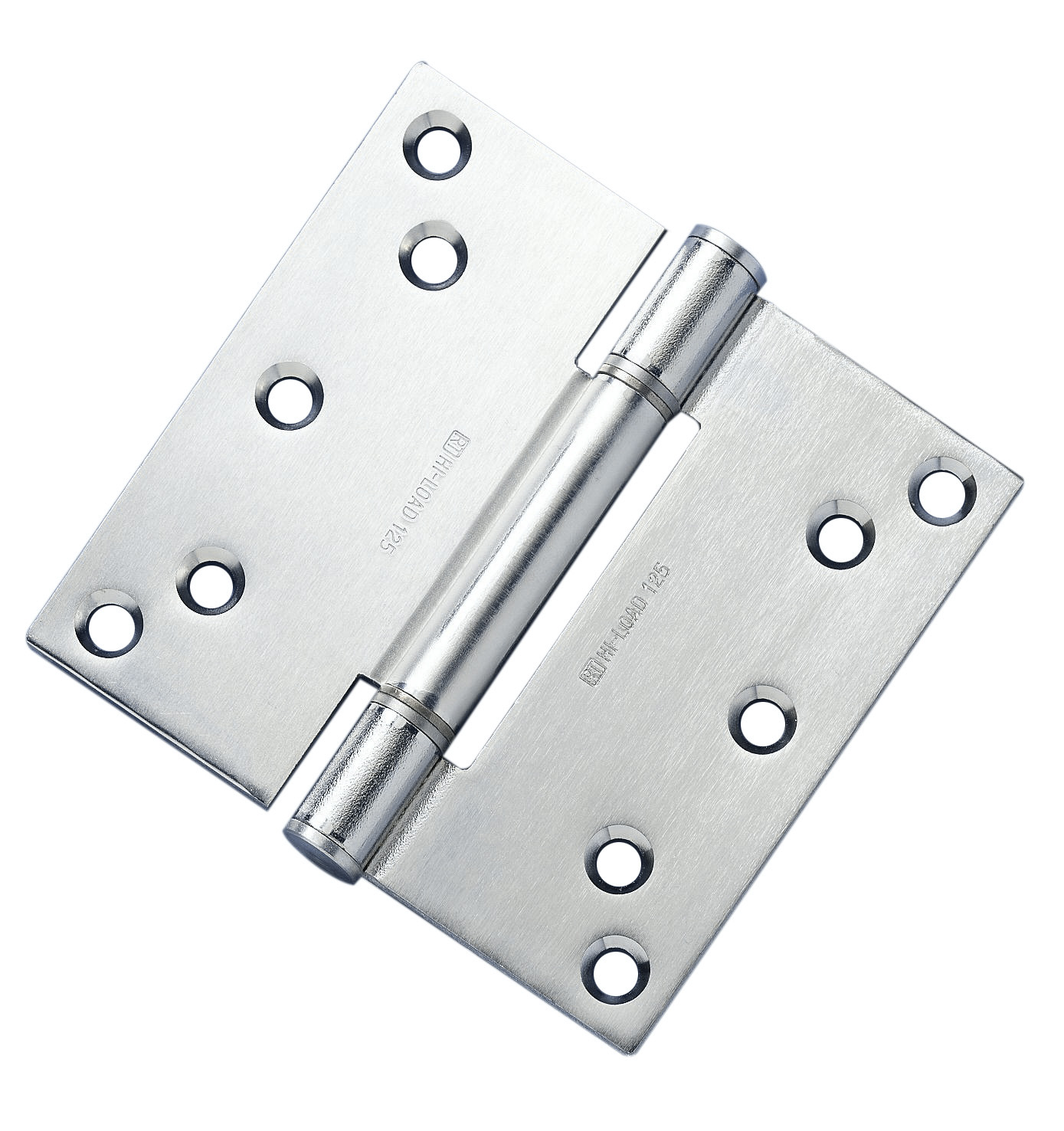

H1254-B: 125×129×3.25mm Three knuckle projection hinge 29mm projection, 129mm overall width

Maximum adjusted door weight H1254-A 120kg or H1254-B 100kg
To BS EN 1935 Grade 13
Minimum door thickness 44mm
Maintenance free, guaranteed for 25 years
CE Certificate No. 1121-CPR-AC0064
Suitable for use on fire doors: Certifire approved – CF209
To be fitted with HP1254 intumescent hinge pads, if being installed on fire doors
c/w metric 6 × 32mm wood screws
Unless stated Mild steel substrate, Grade 304 or 316 stainless steel available
