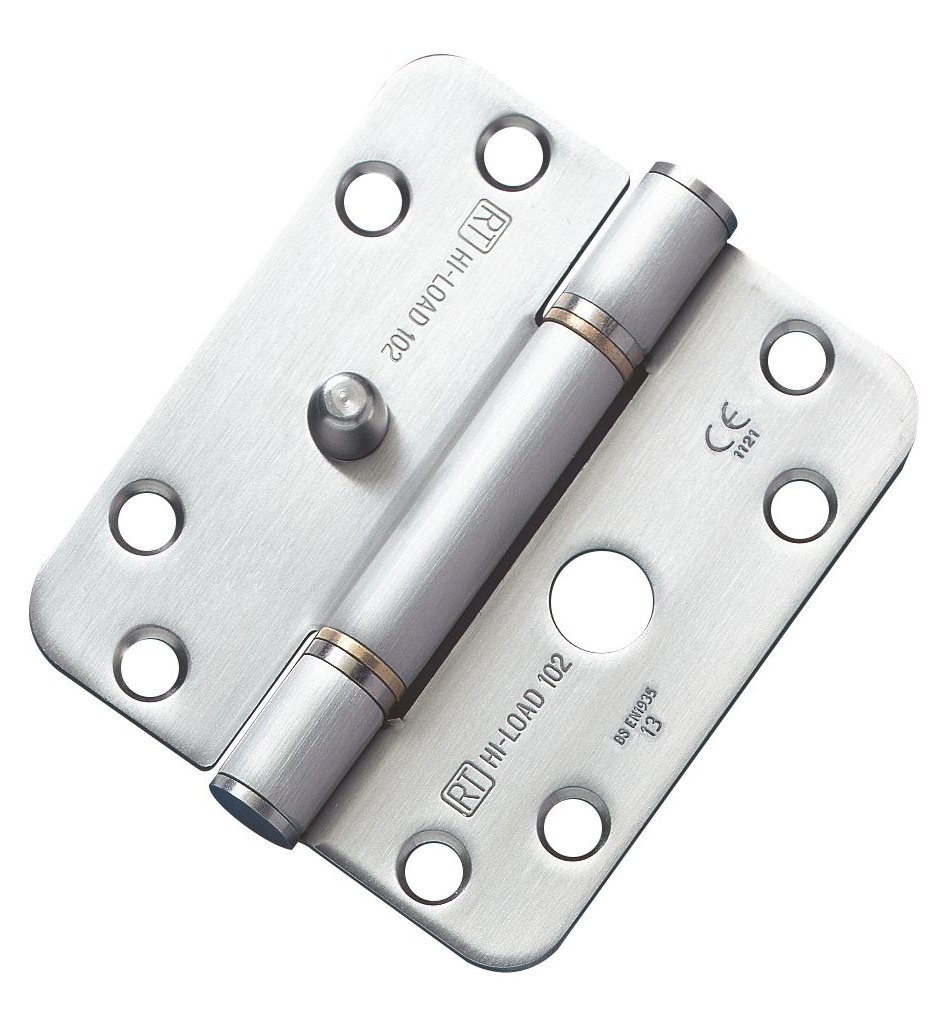

H102-5 (Dog Bolt Hinge)


Security dog bolt version. Prevents removal of the door leaf if the hinge knuckle is attacked. Predominately used on perimeter doors where the hinge knuckle is located externally.
100×88×3mm Three knuckle butt hinge
Maximum adjusted door weight 120kg
To BS EN 1935 Grade 13
Minimum door thickness 44mm
Maintenance free, guaranteed for 25 years
CE Certificate No. 2812-CPR-AC0063
Suitable for use on fire doors: Certifire approved – CF209
To be fitted with HP102 intumescent hinge pads, if being installed on fire doors
c/w metric 5 × 32mm wood screws
Unless stated Mild steel substrate, Grade 304 or 316 stainless steel available
