Specifications

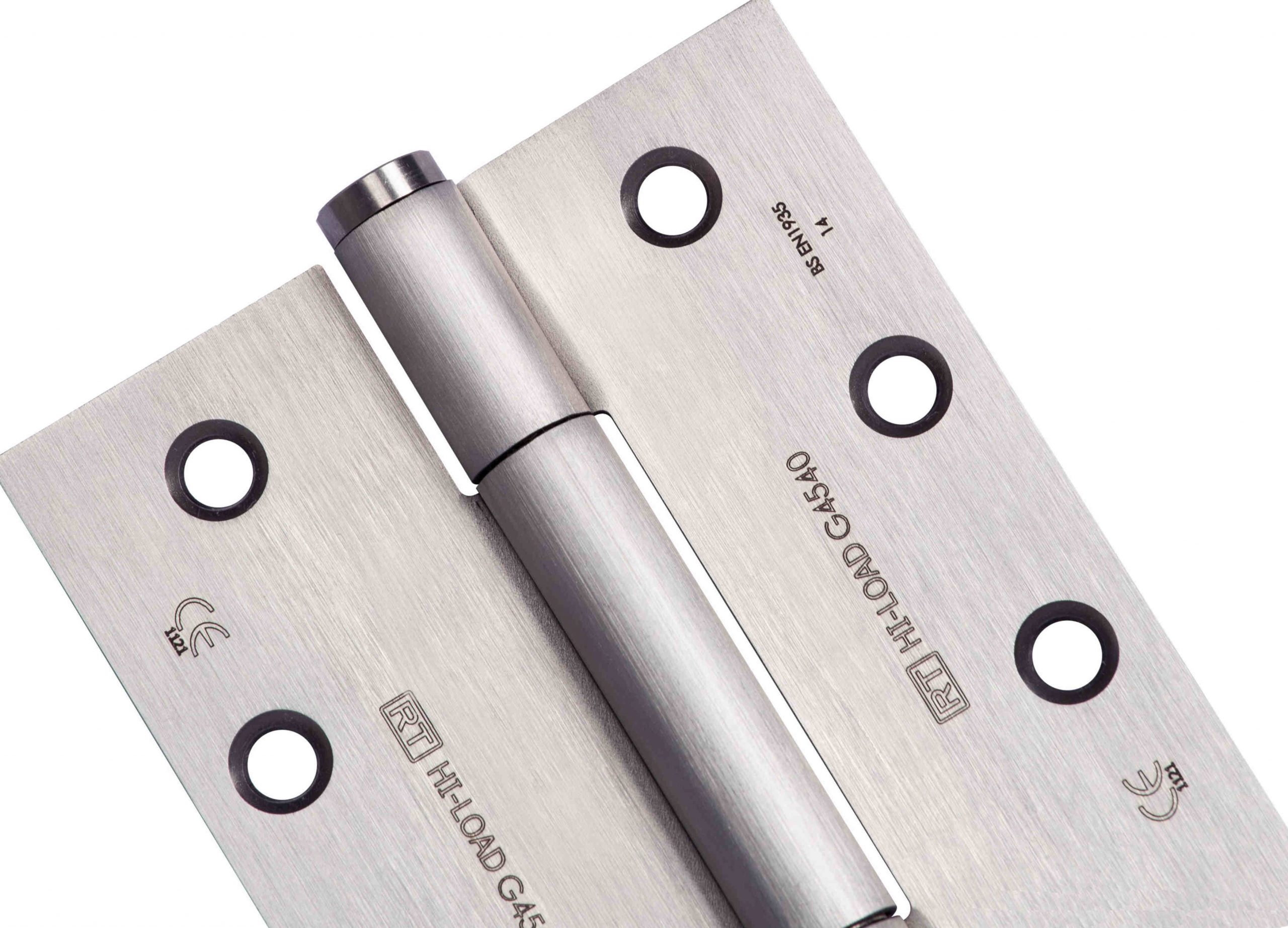

114.3×101.6×3.25mm Three knuckle butt hinge
Dogbolt version (G4540-5)
Radius corner version, R10mm
Maximum adjusted door weight 160kg
To BS EN 1935 Grade 14
Minimum door thickness 54mm
Maintenance free, guaranteed for 25 years
CE Certificate No. 2812-CPR-AC5108
CE Certificate No. 2812-CPR-AC5128 (Dog Bolt version)
Suitable for use on fire doors: Certifire approved – CF215
To be fitted with HP4540 intumescent hinge pads, if being installed on fire doors
c/w metric 5 x 32mm wood screws
Unless otherwise stated stainless steel substrate, Grade 316 stainless steel available
