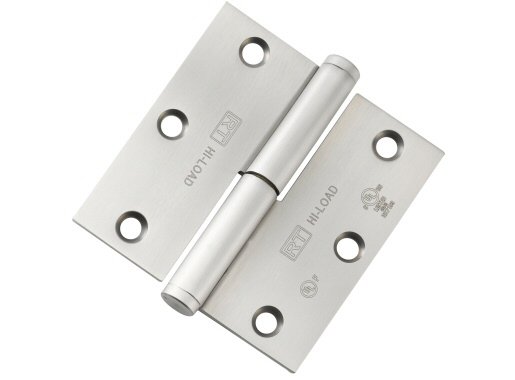

3½” two & three knuckle hinges


3½ x 3½” (88.9 × 88.9mm)
H3535-FS Three knuckle butt hinge
H3535-LS/RS Two knuckle butt hinge (handed)
Maximum adjusted door weight 175lb/80kg
Minimum door thickness 35mm
Maintenance free, guaranteed for 25 years
c/w No.10 × 1¼” Phillips single helix self tapping wood screw
Unless otherwise stated stainless steel substrate, Grade 316 stainless steel available

Conform with ANSI 156.7 and ANSI 156.1.
Independent UL listed.
UL 10C (Cert No: 20110711-R26937)
cUL 10C (Cert No: 20110831-R26937)
